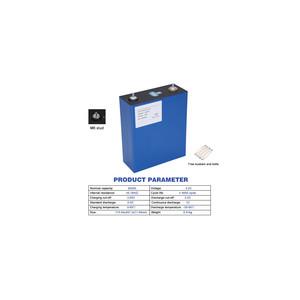

3.2V 202Ah Rechargeable LiFePO4 Lithium Battery for 12V 24V 48V 96V Solar System
Features
Nominal Voltage: 3.2V
Nominal Capacity: 202Ah
Battery Chemistry: Lithium Iron Phosphate (LiFePO4 or LFP)
Cycle Life: Over 4000 deep cycles at 80% depth of discharge
Charge Method: CC-CV charging method, compatible with most lithium chargers
Fast Recharge: Can recharge in under 6 hours
Protection: Over-charge, over-discharge, over-current protection for safe operation
Safety: Very stable chemistry, no chance of thermal runaway even during misuse
Balanced Design: Internally balancing circuit for consistent performance of each cell
Connector: Standard threaded connector for easy connection to battery packs
Applications: Perfect for solar, UPS, electric vehicles, energy storage and more
| Cell Type: | LiFePO4 (LFP) |
| Nominal Voltage: | 3.2V |
| Nominal Capacity: | 202Ah |
| Norminal Energy: | 646.4Wh |
| Dimension (L*W*H): | 201*174*57mm |
| Series / Parallel Number: | 3.95 ± 0.1kg |
| Charge Cut-off Voltage | 3.65V |
| Discharge Cut-off Voltage | 2.5V |
| Charging/Discharging Current | 1C |
| Cycle Life (25°C@80% DOD) | 6000 Cycles |
| Operating Temperature and Humidity Range | Charge: 0~55°C Discharge: -20~60°C |
| Internal Resistance | ≤0.2mΩ |
| Warranty: | 3 Years |
Why Choose Us
1. For Batteries LFP Prismatic cells , 4000+ cycles Series type Support 4S4P , Parallel type support max 4P.
2. 3 Years Warranty
if there is broken item under DDP or non-human damages quality problem within warranty time, we will offer free replacements or refund, up to your needs.
3. For after sales Free mantenance , Free repair , Free replacement if can't repair during Warranty.
4. For customize needs we can customize for you , such Voltage , Capacity , discharge current etc.
5. For additional benefits For resellers we provide super price for you and policy, pls contact us if interest!
Redway Battery specializes in providing a diverse selection of battery sizes and configurations to cater to a wide range of applications. Whether you need standard battery options or have unique power requirements, our team of experienced engineers is here to assist you throughout the entire process of designing, developing, testing, and manufacturing custom battery solutions tailored to your specific needs. Feel free to reach out to us today to learn more about our comprehensive range of battery solutions and how we can create a customized solution for you.
